LoRaWAN WMBus Smart Gas Metering hybrid retrofit module can be retrofitted to various models of diaphragm gas meters, allowing the meter owner the possibility to implement AMR at a point in time after the meter has been installed.

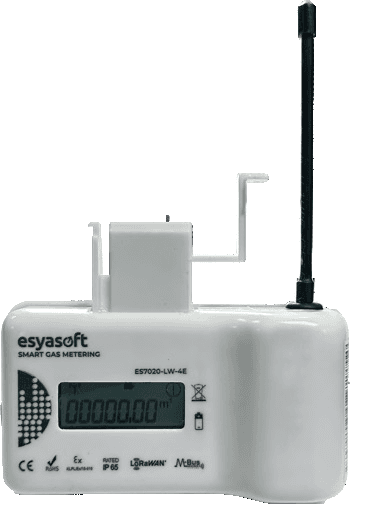

Gas Metering Retrofit
ES-7020-LW-4E
Key Features
- Fixed Network Communication, which allows gas meters to send data directly to a server (local gateway / LoRaWAN public network)
- Works with any 3rd party/private LoRaWAN
- M-Bus Supported
- Wireless MBus Module used as a standby or a backup secondary network to retrieve data using Hand-held Terminal /Mobile / Gateway.
- Supports variable data rates and multi-channel simultaneously
- Robust Industrial Design 10⁰C ~ 60⁰C extreme working environment temperature
- Battery Life up to 7 years
Physical Characteristics
Ingress Protection
IP65
Housing & Weight
Plastic, 300g
Dimensions
220 x 120 x 94 mm
Wireless M-Bus Module
Power(EIRP)
Max 14 dBm
Network
Master, Slave or Repeater
Mode
T Mode
Encryption
AES128
Distance
400m
Standard
EN13757-4:2005
Interval of Transmission
120s
LoRaWAN Module
Band
EU868
Channels
8
Power(EIRP)
Max 14dBm
Interval of transmission
4, 10, 16, 22 hrs
Programmable Bit Rate
300bps - FSK, 10937 bps
