E670 series has been designed for high-end metering and analysis providing unprecedented state-of-the art metrology in terms of accuracy, precision, and reliability. The capabilities include measurement of energy, demand, instantaneous network values, power quality and a comprehensive set of tariffs, logbooks, and profiles for historical values
Esyasoft Landis Gyr FALCON E670
3P LTCT
Key Features
- Bi-directional/ Import Export Energy Measurement; Forwarded Metering
- Current measuring elements in both Phase and Neutral Channel
- Remote Communication over RF Mesh (865-867 MHz) via RF communication module
- DLMS compliance on application layer
METER SPECIFICATIONS
Accuracy
Class 1.0
Voltage
240V (P-N) (-40% to +20%)
Current in Amps
10 (60), Ib (Imax)
Frequency
50Hz (±10%)
DLMS
Category D2
DISPLAY
Digit size in value field
10mm x 5mm
Number of digits
7
Display Mode
2 (Power & battery)
Optical test output
Active energy Type
Meter constant
2000 imp/kWh

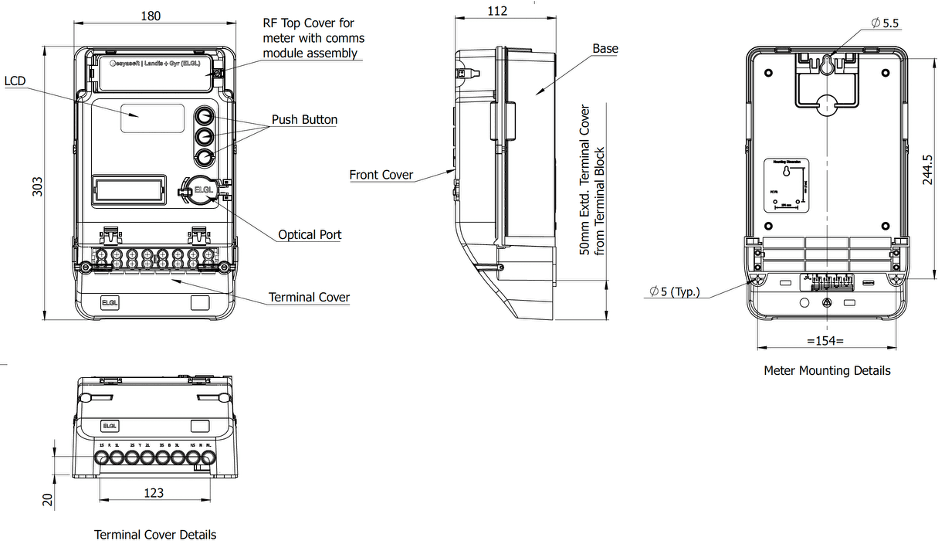

MECHANICAL
Weight
1.83Kg (approx.)
Width
180 mm
Height (without terminal cover)
253 mm
Height (with terminal cover)
303 mm
Depth
112 mm
Suspension
Inverted keyhole
Terminal cover
Long
Ingress Protection
IP 51
Mounting
Top mounting with 3 point fixing arrangement
POWER CONSUMPTION
Voltage circuit
≤5W, 15VA – In idle mode, ≤7W – In communication mode
Current Circuit
≤11.52VA
Standard
IS-16444 Part 2, CBIP 325, IS-15959 Part 2
COMMUNICATION INTERFACE
Optical Interface
According to IEC 62056-21 Type Serial
Max bit rate
9600 bps
Protocols
IEC 62056-21
Wireless Interface
Cellular Communication module
WAN
Cellular:(850/900/1800/2100/ 2300/2500 MHz)
